Ball valve

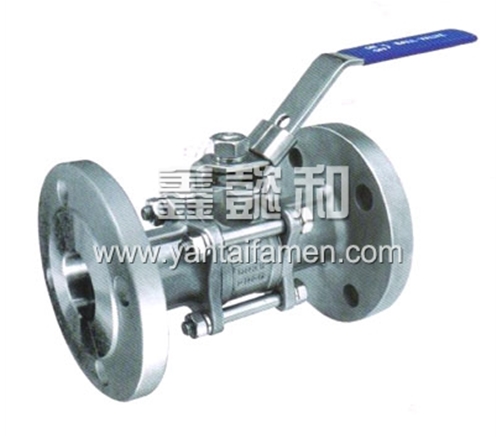

Name：3-PC FLANGE BALL VALVE, FULL BORE, PN40
Details
Investment Castings For Body And Cap
Flange Ends: DIN2543
Face To Face: DIN3202-F1
Pressure Rating: PN40
Material: CF8M，CF8，CF3M，WCB
Pressure Test: API 598
MATERIAL LIST
|
ITEM
|
PART
|
MATERIAL
|
QTY
|
|
1
|
BODY
|
CF8M
|
1
|
|
2
|
BALL SEAT
|
R-PTFE(15%)
|
2
|
|
3
|
BALL
|
SS316
|
1
|
|
4
|
BODY GASKET
|
PTFE
|
2
|
|
5
|
CAP
|
CF8M
|
2
|
|
6
|
SPRING WASHER
|
SS304
|
8(12)
|
|
7
|
NUT
|
SS304
|
8(12)
|
|
8
|
BOLT
|
SS304
|
4(6)
|
|
9
|
STEM
|
SS316
|
1
|
|
10
|
THRUST WASHER
|
PTFE
|
1
|
|
11
|
STEM PACKING
|
PTFE
|
1
|
|
12
|
GLAND NUT
|
SS304
|
1
|
|
13
|
HANDLE
|
SS304
|
1
|
|
14
|
SPRING WASHER
|
SS304
|
1
|
|
15
|
NUT
|
SS304
|
1
|
|
16
|
LOCK DEVICE
|
SS304
|
1
|
|
17
|
HANDLE COVER
|
PLASTIC
|
1
|

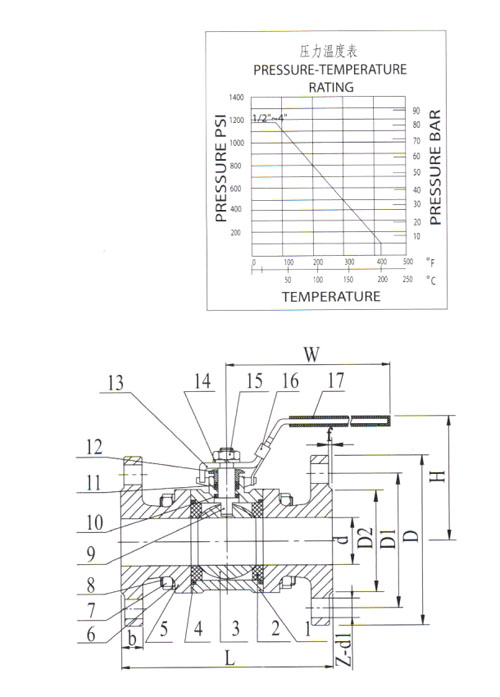

DIMENSION TABLE
|
SIZE
|
d
|
D
|
D1
|
D2
|
L
|
H
|
W
|
Z-Фd
|
b
|
f
|
N.M
|
KGS
|
|
1/2"
|
15
|
95
|
65
|
45
|
130
|
84
|
146
|
4-14
|
16
|
2
|
5
|
1.90
|
|
3/4"
|
20
|
105
|
75
|
58
|
150
|
87
|
146
|
4-14
|
18
|
2
|
8
|
2.84
|
|
1"
|
25
|
115
|
85
|
68
|
160
|
93
|
153
|
4-14
|
18
|
2
|
10
|
3.54
|
|
1-1/4"
|
32
|
140
|
100
|
78
|
180
|
99
|
153
|
4-18
|
18
|
2
|
14
|
5.22
|
|
1-1/2"
|
40
|
150
|
110
|
88
|
200
|
114
|
217
|
4-18
|
18
|
3
|
18
|
6.56
|
|
2"
|
50
|
165
|
125
|
102
|
230
|
122
|
217
|
4-18
|
20
|
3
|
25
|
8.85
|
|
2-1/2"
|
65
|
185
|
145
|
122
|
290
|
150
|
251
|
8-18
|
22
|
3
|
48
|
15.20
|
|
3"
|
76
|
200
|
160
|
138
|
310
|
161
|
251
|
8-18
|
24
|
3
|
75
|
19.40
|
|
4"
|
91
|
235
|
190
|
162
|
350
|
180
|
291
|
8-22
|
24
|
3
|
110
|
26.60
|
