Ball valve

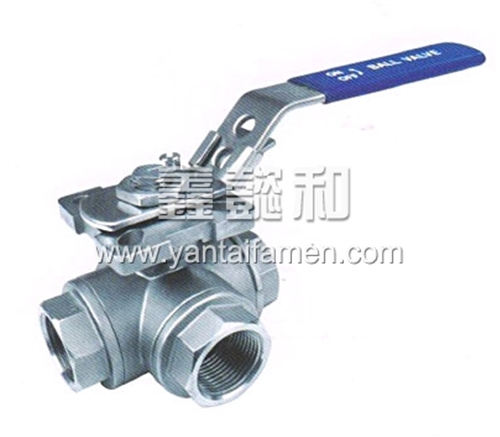

Name：3-WAY BALL VALVE, REDUCED BORE, THREADED END, 1000WOG, WITH MOUNTING PAD(LTYPE)
Details
Investment Castings For Body And Cap
Internal Entry Blow-Out Proof Stem
Pressure Rating: 1000PSI (PN63)
Threaded Ends: ANSI B2.1，BS 21，DIN 25-/2999
Material: CF8M，CF8，CF3M，WCB
Pressure Test: API 598

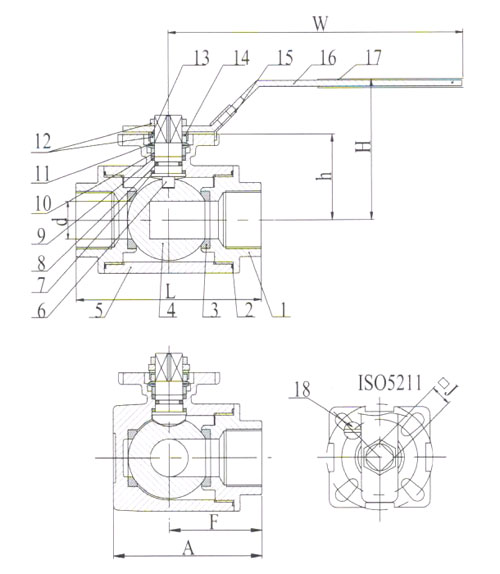

MATERIAL LIST
|
ITEM
|
PART
|
MATERIAL
|
QTY3
|
|
1
|
CAP
|
CF8M
|
3
|
|
2
|
GASKET
|
PTFE
|
3
|
|
3
|
BALL SEAT
|
PTFE
|
4
|
|
4
|
BALL
|
SS316
|
1
|
|
5
|
BODY
|
CF8M
|
1
|
|
6
|
STEM
|
SS316
|
1
|
|
7
|
THRUST WASHER
|
PTFE
|
1
|
|
8
|
O-RING
|
VITON
|
1
|
|
9
|
STME PACKING
|
PTFE
|
1
|
|
10
|
STEM RING
|
SS316
|
1
|
|
11
|
WASHER
|
SS301
|
1
|
|
12
|
NUT
|
SS304
|
2
|
|
13
|
PLATE WASHER
|
SS304
|
1
|
|
14
|
NUT STOPPER
|
SS304
|
1
|
|
15
|
LOCK DEVICE
|
SS304
|
1
|
|
16
|
HANDLE
|
SS304
|
1
|
|
17
|
HANDLE COVER
|
PLASTIC
|
1
|
|
18
|
STOP PIN
|
SS304
|
1
|
DIMENSION TABLE
|
SIZE
|
d
|
L
|
H
|
W
|
F
|
A
|
J
|
ISO5211
|
N.M
|
KGS
|
|
1/4"
|
9.5
|
75
|
66
|
130
|
37.5
|
57.5
|
9
|
F03/F04
|
8
|
0.70
|
|
3/8"
|
11
|
75
|
66
|
130
|
37.5
|
57.5
|
9
|
F03/F04
|
8
|
0.67
|
|
1/2"
|
12
|
75
|
66
|
130
|
37.5
|
57.5
|
9
|
F03/F04
|
8
|
0.63
|
|
3/4"
|
15
|
85
|
72
|
161
|
42.5
|
65.5
|
11
|
F04/F05
|
9
|
0.94
|
|
1"
|
20
|
100
|
77
|
161
|
50.0
|
79.0
|
11
|
F04/F05
|
15
|
1.38
|
|
1-1/4"
|
25
|
122
|
92
|
203
|
61.0
|
97.0
|
14
|
F05/F07
|
20
|
2.89
|
|
1-1/2"
|
32
|
131
|
96
|
203
|
65.5
|
106.5
|
14
|
F05/F07
|
30
|
3.60
|
|
2"
|
40
|
158
|
107
|
203
|
79.0
|
129.0
|
14
|
F05/F07
|
45
|
6.21
|
|
2-1/2"
|
49
|
178
|
135
|
254
|
89
|
145
|
17
|
F07/F10
|
50
|
9.00
|
|
3"
|
60
|
202
|
147
|
254
|
101
|
167
|
17
|
F07/F10
|
80
|
13.10
|
|
4"
|
75
|
246
|
160
|
310
|
123
|
203
|
17
|
F07/F10
|
100
|
22.10
|
