Ball valve

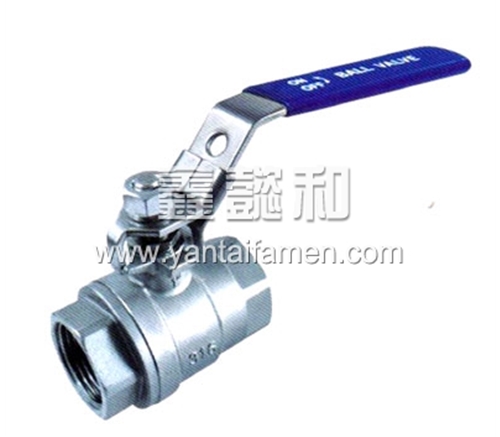

Name：2-PC BALL VALVE, FULL BORE, THREADED END, 1000WOG
Details
Investment Castings For Body And Cap
Internal Entry Blow-Out Proof Stem
Pressure Rating: 1000PSI(PN63)
Threaded Ends: ANSI B2.1，BS 21， DIN 259/2999
Material: CF8M，CF8，CF3M，WCB
Pressure Test: API 598

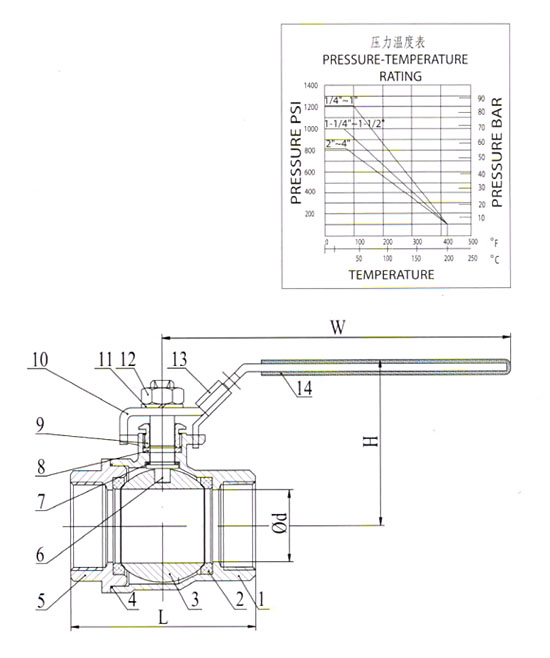

MATERIAL LIST
|
ITEM
|
PART
|
MATERIAL
|
QTY
|
|
1
|
BODY
|
CF8M
|
1
|
|
2
|
BALL SEAT
|
PTFE
|
2
|
|
3
|
BALL
|
CF8M
|
1
|
|
4
|
BODY GASKET
|
PTFE
|
1
|
|
5
|
CAP
|
CF8M
|
1
|
|
6
|
STEM
|
SS316
|
1
|
|
7
|
THRUST WASHER
|
PTFE
|
1
|
|
8
|
STEM PACKING
|
PTFE
|
2
|
|
9
|
GLAND NUT
|
SS304
|
1
|
|
10
|
HANDLE
|
SS304
|
1
|
|
11
|
WASHER
|
SS304
|
1
|
|
12
|
NUT
|
SS304
|
1
|
|
13
|
LOCK DEVICE
|
SS304
|
1
|
|
14
|
HANDLE COVER
|
PLASTIC
|
1
|
DIMENSION TABLE
|
SIZE
|
d
|
L
|
H
|
W
|
N.M
|
KGS
|
|
1/2"
|
15
|
53
|
51
|
104
|
5
|
0.24
|
|
3/4"
|
20
|
65
|
58
|
116
|
8
|
0.36
|
|
1"
|
25
|
73
|
73
|
148
|
10
|
0.58
|
|
1-1/4"
|
32
|
85
|
79
|
148
|
14
|
0.90
|
|
1-1/2"
|
38
|
94
|
85
|
182
|
25
|
1.20
|
|
2"
|
50
|
112
|
95
|
182
|
40
|
1.73
|
