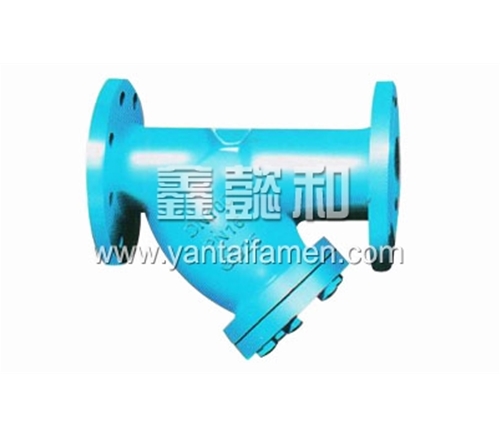

Name：DG-Y-16 FLANGE END STRAINER
Details
DESCRIPTION:
1.Flange drilled conforms to BS EN 1092.
2.Face to face dimension conforms to Series 1 of BS EN 558-1.
2.Face to face dimension conforms to Series 1 of BS EN 558-1.
Scope of Application:
|
NORMINAL PRESSURE
|
1.6MPa
|
|
|
SUITABLE MEDIUM
|
WATER, OIL,STEAM
|
|
|
TEST PRESSURE
|
Shell
|
2.4MPa
|
|
temperature
|
≤100°C
|
|

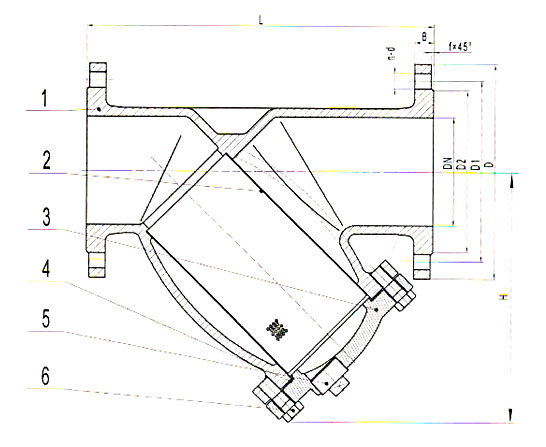

DIMENSIONS--MILLIMETERS:
|
DN
|
L
|
D
|
D1
|
D2
|
B
|
f
|
n-d
|
H
|
|
15
|
130
|
95
|
65
|
46
|
14
|
2
|
4-14
|
76
|
|
20
|
150
|
105
|
75
|
56
|
16
|
2
|
4-14
|
90
|
|
25
|
160
|
115
|
85
|
65
|
16
|
3
|
4-14
|
108
|
|
32
|
180
|
140
|
100
|
76
|
18
|
3
|
4-19
|
117
|
|
40
|
200
|
150
|
110
|
84
|
18
|
3
|
4-19
|
132
|
|
50
|
230
|
165
|
125
|
99
|
20
|
3
|
4-19
|
156
|
|
65
|
290
|
185
|
145
|
118
|
20
|
3
|
4-19
|
176
|
|
80
|
310
|
200
|
160
|
132
|
22
|
3
|
8-19
|
199
|
|
100
|
350
|
220
|
180
|
156
|
24
|
3
|
8-19
|
240
|
|
125
|
400
|
250
|
210
|
184
|
26
|
3
|
8-19
|
292
|
|
150
|
480
|
285
|
240
|
211
|
26
|
3
|
8-23
|
320
|
|
200
|
600
|
340
|
295
|
266
|
30
|
3
|
12-23
|
399
|
|
250
|
730
|
405
|
355
|
319
|
32
|
3
|
12-28
|
516
|
|
300
|
850
|
460
|
410
|
370
|
32
|
4
|
12-28
|
568
|
|
350
|
980
|
520
|
470
|
438
|
36
|
4
|
16-28
|
648
|
|
400
|
1100
|
580
|
525
|
490
|
38
|
4
|
16-31
|
759
|
MATERIAL LIST:
|
NO.
|
Name of part
|
Material
|
Germany standard
|
Chinese standard
|
|
1
|
body
|
cast iron
|
DIN1691 GG25
|
0Cr18Ni9
|
|
2
|
screen
|
stainless steel
|
DIN17440 X5CrNi189
|
0Cr18Ni9
|
|
3
|
bonnet
|
cast iron
|
DIN1691 GG25
|
GB9439-88 HT250
|
|
4
|
gasket
|
graphite
|
|
GB3518-83 LC35-999
|
|
5
|
screw plug
|
cast brass
|
DIN G-CuZn37Pb
|
GB1176-87 ZCuZn40Pb2
|
|
6
|
bolt
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
