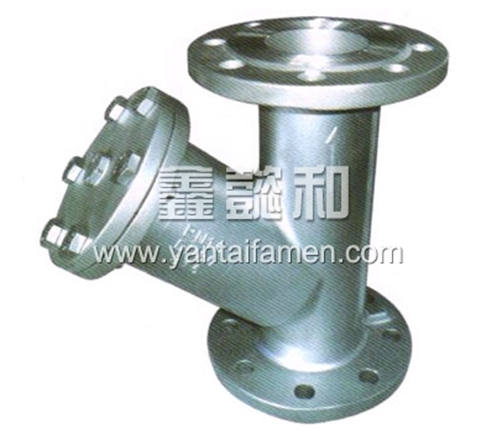

Name：Y-FILTER，FLANGEN END，PN16 ( VT-YF )
Details
Investment Castings For Body And Cap
Flanged End：DIN2501 PN16
Face To Face：DIN3202 F1
Pressure Test：API598
MATERIAL LIST
|
ITEM
|
PART
|
MATERIAL
|
QTY
|
|
1
|
BODY
|
CF8M
|
1
|
|
2
|
COVER
|
CF8M
|
1
|
|
3
|
BOLT
|
304
|
4(6)
|
|
4
|
GASKET
|
PTFE
|
1
|
|
5
|
FILTER SCREEN
|
CF8M
|
1
|
|
6
|
BLOW OFF PLUG
|
CF8M
|
1
|

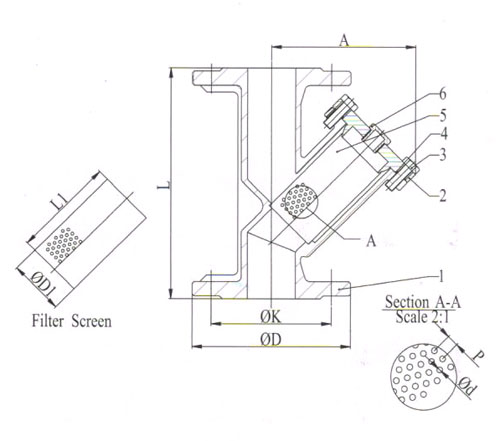

DIMENSION TABLE
|
SIZE
|
A
|
ФD
|
ФD1
|
L
|
L1
|
P
|
Фd
|
ФK
|
KGS
|
|
1/2"
|
75
|
95
|
22
|
130
|
58
|
2
|
1
|
65
|
1.79
|
|
3/4"
|
90
|
105
|
26
|
150
|
65
|
2
|
1
|
75
|
2.57
|
|
1"
|
100
|
115
|
32
|
160
|
72
|
2
|
1
|
85
|
3.60
|
|
1-1/4"
|
115
|
140
|
37
|
180
|
83
|
2
|
1
|
100
|
4.72
|
|
1-1/2"
|
130
|
150
|
47
|
200
|
95
|
2
|
1
|
110
|
6.02
|
|
2"
|
150
|
165
|
57
|
230
|
114
|
2
|
1
|
125
|
9.00
|
|
2-1/2"
|
190
|
185
|
69
|
290
|
152
|
3.5
|
2
|
145
|
12.80
|
|
3"
|
225
|
200
|
84
|
310
|
176
|
3.5
|
2
|
160
|
17.36
|
|
4"
|
230
|
220
|
105
|
350
|
180
|
3.5
|
2
|
180
|
20.03
|
