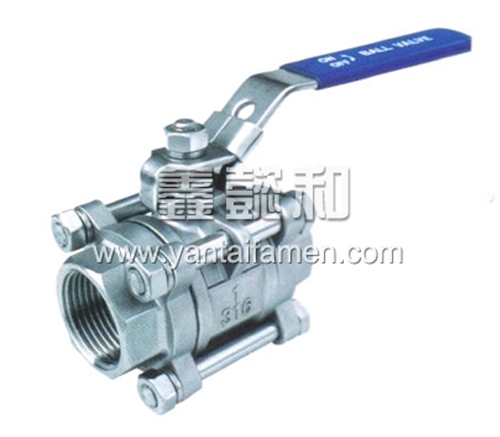

名称：V-3三片式不锈钢球阀
详细信息
精密铸造三片式球阀（通径）
压力等级：1000PSI(PN63)
螺纹标准：ANSI B2.1，BS 21，DIN 259/2999
材料：CF8M，CF8，CF3M，WCB
压力测试：API 598
|

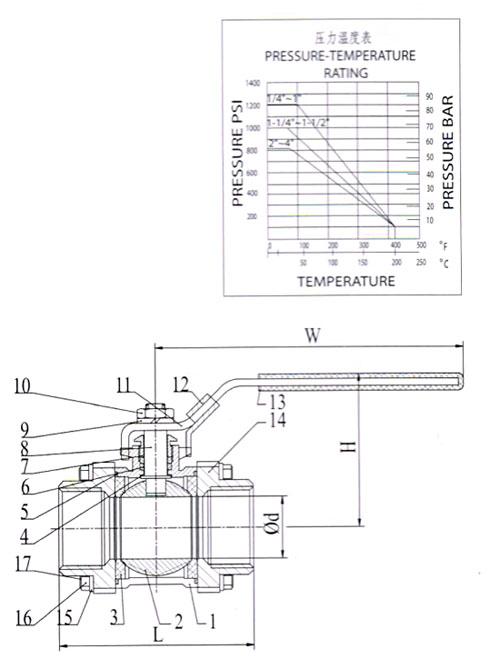

ITEM
|
PART
|
MATERIAL
|
QTY
|
|
1
|
BODY
|
CF8M
|
1
|
|
2
|
BALL
|
CF8M
|
1
|
|
3
|
BALL SEAT
|
PTFE
|
2
|
|
4
|
THRUST WASHER
|
PTFE
|
1
|
|
5
|
BODY GASKET
|
PTFE
|
2
|
|
6
|
STME PACKING
|
PTFE
|
2
|
|
7
|
GLAND NUT
|
SS304
|
1
|
|
8
|
STEM
|
SS316
|
1
|
|
9
|
SPRING WASHER
|
SS304
|
1
|
|
10
|
NUT
|
SS304
|
1
|
|
11
|
HANDLE
|
SS304
|
1
|
|
12
|
HANDLE LOCK
|
SS304
|
1
|
|
13
|
HANDLE COVER
|
PLASTIC
|
1
|
|
14
|
CAP
|
CF8M
|
2
|
|
15
|
SPRING WASHER
|
SS304
|
4(6)
|
|
16
|
NUT
|
SS304
|
4(6)
|
|
17
|
BOLT
|
SS304
|
4(6)
|
|
SIZE
|
d
|
L
|
H
|
W
|
N.M
|
KGS
|
|
1/4"
|
12.5
|
51
|
43.5
|
103
|
5
|
0.29
|
|
3/8"
|
12.5
|
51
|
44.5
|
103
|
5
|
0.29
|
|
1/2"
|
15
|
63
|
50
|
103
|
6
|
0.43
|
|
3/4"
|
20
|
71
|
59
|
127
|
10
|
0.61
|
|
1"
|
25
|
80
|
61
|
127
|
12
|
0.80
|
|
1-1/4"
|
32
|
94
|
79
|
154
|
17
|
1.43
|
|
1-1/2"
|
38
|
103
|
83
|
154
|
130
|
1.73
|
|
2"
|
50
|
126
|
94
|
195
|
48
|
2.72
|
|
2-1/2"
|
65
|
158
|
135
|
244
|
58
|
5.44
|
|
3"
|
80
|
179
|
144
|
244
|
96
|
7.64
|
|
4"
|
100
|
213
|
149
|
285
|
124
|
15.78
|
