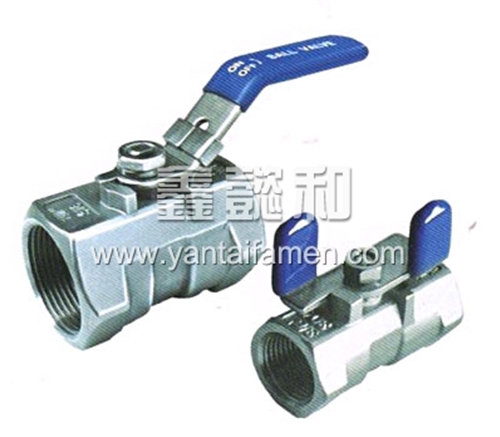

名称：V-1一片式不锈钢球阀
详细信息
精密铸造一片式球阀（缩径）
压力等级：1000PSI(PN63)
螺纹标准：ANSI B2.1，BS 21，DIN 259/2999
材料：CF8M，CF8，CF3M，WCB
压力测试：API 598
|

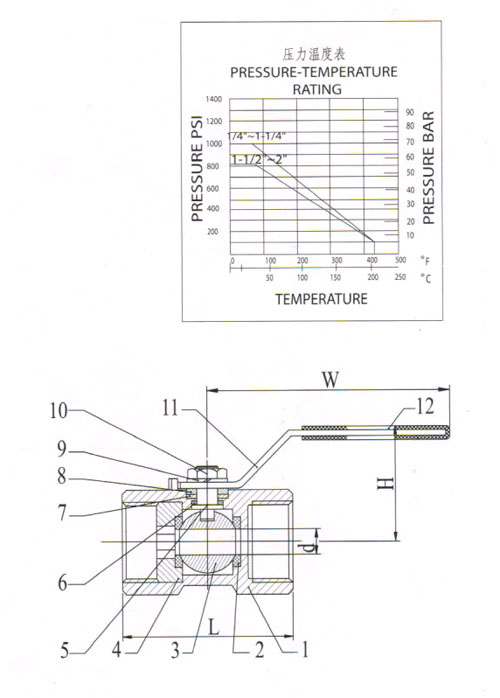

ITEM
|
PART
|
MATERIAL
|
QYT
|
|
1
|
BODY
|
CF8M
|
1
|
|
2
|
BALL SEAT
|
PTFE
|
2
|
|
3
|
BALL
|
CF8M
|
1
|
|
4
|
CAP
|
CF8M
|
1
|
|
5
|
STEM
|
SS316
|
1
|
|
6
|
THRUST WASHER
|
PTFE
|
1
|
|
7
|
STEM PACKING
|
PTFE
|
1
|
|
8
|
WASHER
|
SS304
|
1
|
|
9
|
SPRING WASHER
|
SS304
|
1
|
|
10
|
NUT
|
SS304
|
1
|
|
11
|
HANDLE
|
SS304
|
1
|
|
12
|
HANDLE COVER
|
PLASTIC
|
1
|
|
SIZE
|
d
|
L
|
H
|
W
|
N.M
|
KGS
|
|
1/4"
|
5
|
40
|
33
|
67
|
4
|
0.06
|
|
3/8"
|
7
|
44
|
36
|
67
|
4
|
0.08
|
|
1/2"
|
9.5
|
57
|
37
|
93
|
6
|
0.16
|
|
3/4"
|
12.5
|
59
|
42
|
93
|
6
|
0.26
|
|
1"
|
15
|
71
|
52
|
103
|
8
|
0.38
|
|
1-1/4"
|
20
|
78
|
56
|
103
|
10
|
0.65
|
|
1-1/2"
|
25
|
82
|
65
|
125
|
14
|
0.85
|
|
2"
|
32
|
100
|
70
|
125
|
15
|
1.40
|
